The Ultimate Shower Niche Buying Guide

A shower niche is often selected as a final aesthetic touch, yet it represents a deliberate breach in your shower’s waterproofing system. Treat it merely as storage, and you risk inviting moisture into the wall cavity, leading to invisible rot long before tile failure becomes obvious. While inspiration photos highlight beautiful mosaics, they rarely show the structural framing or waterproofing layers required to prevent leaks. Doing it wrong results in mold, standing water, and costly remediation.

We need to move beyond design trends to address the technical realities of structural integrity, material costs versus labor hours, and long-term maintenance. This guide evaluates Shower Niche options based on waterproof reliability, Total Cost of Ownership (TCO), and installation risks. You will learn how to balance visual impact with engineering soundness to ensure your bathroom upgrade lasts as long as the house itself.

Key Takeaways

• Cost Reality: Custom-built niches often cost 3x–4x more than Prefab units once skilled labor is factored in.

• The "Gold Standard" Size: 12" x 24" (vertical) fits standard stud bays without costly structural reframing.

• Waterproofing Rule #1: Avoid "retrofit" or "overlap" niches that rely solely on silicone; they are high-failure points.

• Design Warning: Avoid small mosaic tiles (like pebbles) on the niche bottom—they are difficult to clean and prone to standing water.

The Three Core Niche Categories: Pros, Cons, and Use Cases

When selecting a storage solution, the decision framework should rely on installation methodology and failure risk rather than just finish options. We classify the market into three distinct technical categories: Tile-Ready Prefab, Finished Pre-Formed, and Custom-Built.

1. Tile-Ready Prefab (Foam/Plastic)

This category consists of a waterproof box, typically made from high-density foam or ABS plastic, which installs directly onto the wall studs before the backer board goes up. It acts as a continuous part of the waterproofing layer.

Pros: The primary advantage is the guaranteed waterproof slope. A high-quality Shower Tilable Niche comes from the factory with the bottom shelf already pitched to drain water. This eliminates human error. Additionally, dimensions are standardized to fit typical framing, reducing installation time from hours to minutes.

Cons: You are limited to fixed sizes. If your design calls for a specific non-standard dimension, you may be out of luck unless you modify the framing. Most units fit 16-inch on-center stud bays.

Best For: The majority of residential renovations where speed, budget, and waterproofing warranties are top priorities.

2. Finished / Pre-Formed (Stainless Steel/Solid Surface)

These are finished products that do not require tiling. They are often made of stainless steel or solid surface materials and insert into the wall cavity to create a sleek, modern look.

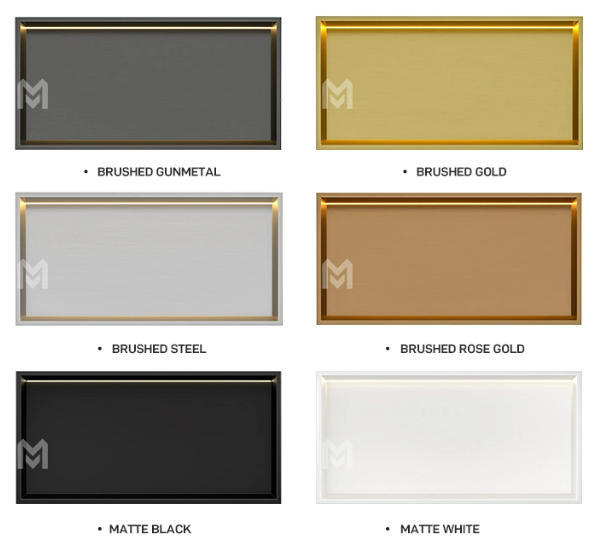

Pros: The industrial aesthetic is sharp and modern. More importantly, there are zero grout lines to clean. A stainless steel Shower Recess Niche is extremely durable and impervious to water absorption.

Cons: The look can feel "cold" or clinical in a traditional bathroom. The upfront material cost is also higher compared to a raw foam box, though you save on tiling labor.

Best For: Modern, minimalist designs where low maintenance is the primary goal.

3. Custom-Built (Traditional Framing)

This is the traditional method where a carpenter frames a box between studs using 2x4s, clads it in cement board, and manually waterproofs seams with tape and liquid membrane.

Pros: Possibilities are infinite. If you want a wall-to-wall horizontal niche or a complex geometric shape, custom framing is the only path.

Cons: Reliability is highly dependent on installer skill. If the carpenter fails to pitch the bottom sill correctly, you get "birdbaths"—standing water that breeds bacteria. It is labor-intensive, requiring framing, boarding, waterproofing, cure time, and flood testing.

Best For: High-end luxury projects with non-standard dimensions that justify the extra labor cost.

Cost Analysis: Material Price vs. Installed Cost

Homeowners often mistake the shelf price of a material for the total cost. In bathroom construction, the "cheaper" material option is frequently the most expensive choice once skilled labor enters the equation.

The "Hidden" Labor Factor

Comparing a prefabricated unit to a custom-built solution requires looking at the clock. A prefab foam unit might cost $50–$150 upfront. However, a contractor can install it in roughly 20 minutes. It is ready for tile immediately.

Conversely, a custom niche involves almost zero material cost—just scrap lumber and leftover backer board. But the labor involves framing the box, cutting board to fit, taping seams, applying liquid membrane, waiting for it to dry, applying a second coat, and verifying the slope. This process consumes 4 to 8 hours spread over multiple days. At standard labor rates, the "free" custom niche quickly becomes expensive.

The $800+ Threshold

A quality custom niche often starts at $800–$1000 when you account for the skilled labor required to guarantee waterproofing. In this context, purchasing a unit from a reputable Shower Niche manufacturer acts as a fixed-cost insurance policy. You pay a known price for the unit to avoid the variable cost of labor overruns and potential waterproofing errors.

Retrofit Risks (The "Cheap" Trap)

You may encounter cheap "retrofit" or "overlap" niches designed to be glued onto existing tile or drywall. These are dangerous for wet zones. They typically rely on a bead of silicone to keep water out of the wall.

Silicone inevitably degrades. When it does, water enters the wall cavity behind the niche. Since the niche overlaps the tile, you will not see the damage until the wall feels soft or tiles fall off. Never use retrofit units for a primary shower; they are only acceptable for non-wet zones or dry storage.

Sizing and Placement: Technical Standards and Ergonomics

Proper sizing is not just about what fits your shampoo bottles; it is about what fits your house structure. Ignoring framing realities can turn a simple job into a structural renovation.

Vertical vs. Horizontal Dimensions

Most homes in the US are framed with studs spaced 16 inches on-center. This leaves a cavity roughly 14.5 inches wide. A 12-inch wide niche fits perfectly into this bay without modification.

When you desire a horizontal Shower Wall Niche wider than 14.5 inches, the complexity spikes. The contractor must cut through load-bearing studs and install a structural header to carry the weight. This significantly increases demolition scope, debris, and structural framing costs. Stick to the 14.5-inch width limit unless you are prepared for a larger renovation scope.

Depth and Height Guidelines

Understanding Shower Niche Size limitations prevents disappointment during installation.

• Standard Depth: Standard 2x4 walls provide a 3.5-inch cavity. Most niches are designed to fit this depth. If you want a deeper shelf, you must "fur out" the wall, which sacrifices bathroom floor space.

• Placement Height: The ergonomic "chest-to-eye" zone is typically 48 to 60 inches off the floor. This keeps products accessible without requiring bending or reaching.

• The "Foot Nook": Consider a secondary, low-level niche approximately 12 inches off the floor. This serves as a footrest for shaving legs—a high-value ergonomic addition that costs little to add during the rough-in phase.

Tile Layout Alignment

The difference between a professional look and a DIY look often comes down to the "sliver" problem. Before installing the niche, your tiler should perform a "dry fit" or layout calculation. The goal is to adjust the niche location slightly—up, down, left, or right—so that full tiles land on the edges.

If the layout is ignored, you may end up with ugly 1-inch tile slivers bordering the niche. These are difficult to cut cleanly and visually disruptive. Moving the niche just two inches during framing can ensure perfect tile alignment.

Material Selection: Foam, Membrane, and Lighting

Selecting the right substrate is as important as selecting the tile. The material behind the tile determines how well the niche handles moisture and impact.

Foam Density & Coatings

Most professional tilers prefer foam substrates, but they differ in coating.

• Cement-Coated (e.g., Wedi/Hydroblok): These are rigid and offer high impact resistance. They are the best choice if you plan to install heavy stone tiles or large format porcelain.

• Membrane-Bonded (e.g., Kerdi): These are lightweight and integrate seamlessly if the rest of your shower uses the same fleece membrane system. They are excellent for standard ceramic tile applications.

The Plastic (ABS) Debate

ABS plastic niches are ubiquitous in big-box stores.
Pros: They are cheap and physically indestructible.
Cons: Mortar has a hard time bonding to smooth plastic. Some require scuffing with sandpaper or using specialized solvent glues that are messy and toxic. If the mortar bond fails, tiles can pop off the back of the niche years later.

Shower LED Niche Integration

Lighting adds a luxury hotel feel but introduces electrical complexity in a wet zone. A Shower LED Niche requires a waterproof aluminum channel (diffuser) to house the strip light. The driver (transformer) must be located outside the shower area, usually in a closet or vanity, to remain accessible for service.

Recommendation: Do not attempt to retrofit LEDs into a standard niche. Buy a unit with a pre-integrated channel. This ensures the lighting strip remains watertight and the heat dissipation is managed correctly.

Installation & Design Pitfalls: Lessons from the Field

Even with the right product, installation errors can ruin the result. Here are common failures reported by installers and dissatisfied homeowners.

The "Pebble Floor" Mistake

Homeowners often love the look of mosaic pebbles and want to install them on the niche shelf. This is a functional mistake. Pebbles create an uneven surface with excessive grout lines. This texture traps soap scum and water, creating a cleaning nightmare.

The Fix: Always use a solid piece of stone (quartz or marble remnant) or a large format tile for the bottom shelf, also known as the "sill." This ensures a smooth surface that drains water effectively and wipes clean in seconds.

Ignoring the Slope

Gravity is your best defense against mold. Every horizontal surface in a shower must slope toward the drain. The bottom shelf of your niche should pitch approximately 1/8" per foot.

Test: If you purchase a prefab unit, check it with a level. A manufacturing defect where the shelf is flat or back-pitched will cause water to pool. Avoid any unit that does not demonstrate a clear slope.

Trim and Edging (The Professional Touch)

How the raw edge of the tile meets the niche defines the quality of the finish.

• Schluter/Metal Profiles: These are the modern standard. However, corners must be mitered at 45 degrees. Lazy installers will butt-joint them (square cut), which leaves sharp, exposed metal edges that look amateurish.

• Bullnose Availability: Many modern tile lines do not offer matching bullnose (rounded edge) pieces. If your tile lacks bullnose, you must plan for metal profile trim early in the design phase.

Conclusion

The shower niche is a small component with outsized impact on bathroom longevity. When planning your renovation, treat the niche as a structural component rather than a decorative accessory. The decision matrix is straightforward:

• For a balance of budget and reliability, choose a Prefab Foam (Cement Coated) unit. It eliminates slope errors and installs quickly.

• For zero maintenance, opt for a Stainless Steel Finished Niche. It offers improved durability and hygiene.

• For specific architectural lines, rely on Custom Framing, but ensure you budget for the skilled waterproofing labor required to prevent failure.

Ultimately, the cost of a quality prefab unit is negligible compared to the cost of ripping out a moldy wall five years later. Invest in the substrate first, and the aesthetic will follow.

FAQ

Q: What is the best standard size for a shower niche?

A: The most practical size is 12" wide x 24" high. This dimension fits perfectly between standard 16-inch on-center wall studs (which leave a 14.5" gap). It maximizes storage volume without requiring expensive structural header work or stud modification. For broader storage needs, you can stack two of these units vertically.

Q: Can I install a shower niche on an exterior wall?

A: It is risky. Installing a niche displaces insulation, creating a cold spot in the wall. In cold climates, this temperature difference can cause condensation to form inside the wall cavity, leading to mold. If unavoidable, use a thinner high-performance insulation behind the niche, but an interior wall is always safer.

Q: Should I tile the inside of the niche with the same tile as the wall?

A: Using matching tile makes the shower space feel larger and less cluttered, as the niche blends in. "Contrasting" tile creates a focal point but requires perfect layout execution; any asymmetry or sliver cuts become immediately obvious. For a safe, high-end look, match the wall tile but use a solid stone slab for the bottom shelf.

Q: What is a Shower Hanging Niche?

A: A Shower Hanging Niche typically refers to caddies or organizers that hang over the showerhead or glass door. While they require zero installation, they are temporary solutions that clutter the space and are difficult to clean around. Built-in recessed niches are permanent upgrades that add actual resale value to the home.

Q: How do I clean a tiled shower niche?

A: Prevent soap scum buildup by wiping the shelf after use. When deep cleaning, avoid abrasive scrubbing pads on the grout, as they can wear away the sealant. Use pH-neutral cleaners to protect both the grout and any natural stone shelves. If you have a solid surface niche, a simple wipe with a microfiber cloth is usually sufficient.
